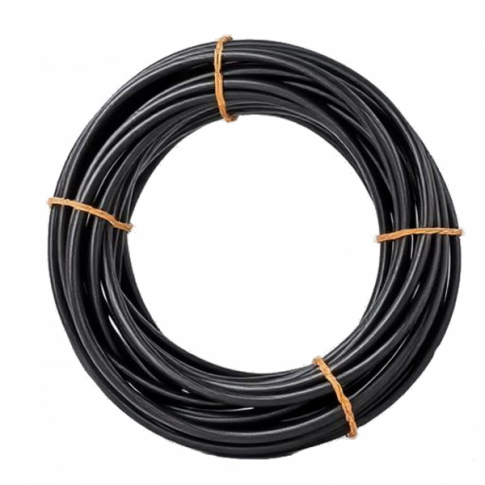

100m coil of 2.5mmВІ tinned copper black solar PV cable IEC 62930, H1Z2Z2-K and TUV certified
This is a 100-metre coil of premium-quality 2.5mm² single core black solar PV cable, specifically designed for photovoltaic applications. Manufactured with a tinned copper conductor for superior conductivity and corrosion resistance, this cable is ideal for connecting solar panels in both domestic and commercial energy systems. It is double insulated for enhanced durability and electrical safety, making it well-suited for harsh outdoor environments and long-term exposure to UV and weathering.
The cable complies with IEC 62930 standards and is rated H1Z2Z2-K, ensuring high performance and full compliance with international regulations. It is also TÜV certified, confirming its suitability for use in high-voltage solar applications up to 1500VDC. The tough, UV-resistant black sheath and robust double insulation make it safe to install in all weather conditions, including extreme heat and cold.
This 2.5mm² cable is typically sufficient for off-grid 12V solar systems up to 100W, as well as larger grid-tied panels operating at higher voltages (typically 30–60V). It offers excellent flexibility and low power loss over long distances, making it ideal for both new solar installations and extension of existing setups. While this listing is for the cable only, it is fully compatible with standard MC4-type connectors used on most solar panels, including those from Photonic Universe.
Durable, efficient, and certified to the highest standards, this cable is a reliable choice for any solar energy system requiring safe and stable power transmission.
Cable specifications:
- Conductor: tinned copper
- Colour: Black
- Cross section: 2.5mm²
- Strand configuration: 49/0.25mm
- Insulation thickness: 0.70mm
- Shealth thickness: 0.90mm
- Outer diameter: 5.5mm
- Voltage rating: 1.5kV DC / 1.0kV AC
- Conductor resistance: 8.21 Ohm/km (20°C)
- Rated current: 41A
- Ambient temperature: -40°C ~ +90°C
- Maximum conductor temperature: 120°C
- Insulation and Jacket: XLPE (E-Beam cross-linked compound, flame retardant, halogen free, UV and ozone resistant)
- Certification: TUV, IEC 62930, H1Z2Z2-K
- RoHS & Reach conformity
If you have any questions about this item or you need our free advice please contact us via email or phone.
