Adjustable angle bracket for mounting a small solar panel on a single arm pole, fence or wall

This set includes:

• 1 x Solar panel bracket
• 1 x Pole bracket
• 2 x Hose clamps
• 1 x Screw accessories set

Key features:

• Specially designed for positioning solar panels at an angle with adjustable tilt for optimum performance.

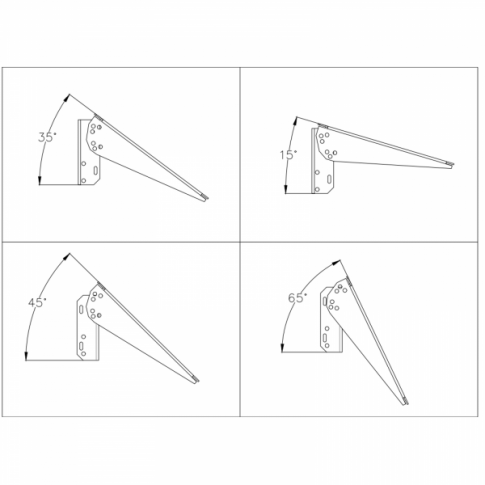

• Can be positioned at angles of 15, 35, 45, and 65 degrees.
• Suitable for small Photonic Universe solar panels up to 15W and most other small solar panels with a frame size of 307mm.
• Can be used for fixing solar panels to poles, walls, fences or any flat surface.
• Easy to install the panel and provides a safe and secure mount.
• Made of aluminium alloy for strong and secure fitting of your solar panels.

Please note:

The kit is supplied with screws for fixing the bracket to a small solar panel and to a pole with hose clamps. If mounting to a flat surface or wall then additional fixings not included will be required.

Click on the Installation tab for more information

Installation is easy - fix the pole bracket to the solar panel bracket using the nuts and bolts provided (please see pictures for guidance). Next, use the nuts and bolts provided to mount your solar panel to the bracket. Finally, use the hose clamps to mount the pole brakcet to the mounting pole. For mounting to a wall or other flat surface then the bracket can be secured with fixings that are not provided.
