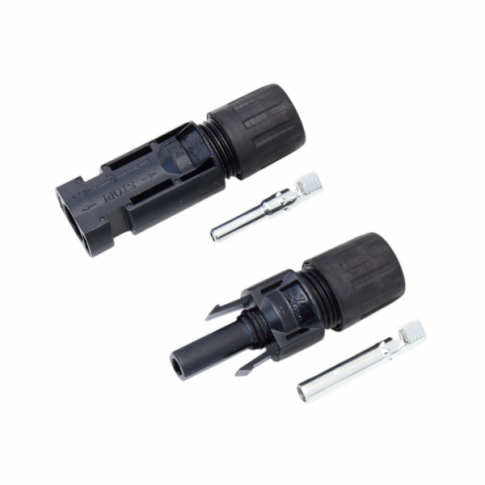

Pair of 1500VDC MC4 cable connectors / plugs for solar panels, extension leads or photovoltaic systems

Pair of waterproof 1500VDC MC4 connectors / plugs suitable for solar panels, extension cables or photovoltaic systems - ideal for outdoor applications



These connectors fit all Photonic Universe solar panels and most of other solar panels with MC4 connectors. Please note that these connectors are not compatible with other types of MC connectors such as MC3.

These connectors fit any cable with 4.0mm, 6.0mm and 10.0mm cross section.

These connectors are rated up to 1500VDC.

The connectors are fully waterproof which means that they can be used outdoors in all weather conditions.





Specifications:

• Rated voltage: 1500VDC
• Rated current: 20A (4mm²), 50A (6mm²), and 69A (10mm²)
• Ambient temperature range: from -40°C to +90°C
• Protection rating: IP67
• Certifications: UL and TUV



Installation is simple, however a crimping tool or crimping pliers are recommended for tight fitting.
