Parallel connection kit for Iconica 48V ZTR series hybrid pure sine wave inverters

This parallel connection kit includes all of the parts required for connecting multiple identical 48V Iconica inverters together in parallel. Compatible models include:

• Iconica 48V Zero Transfer rack-mounted ZTR series hybrid inverter


The kit includes:

• 1 x Circuit board
• 1 x Communication cable

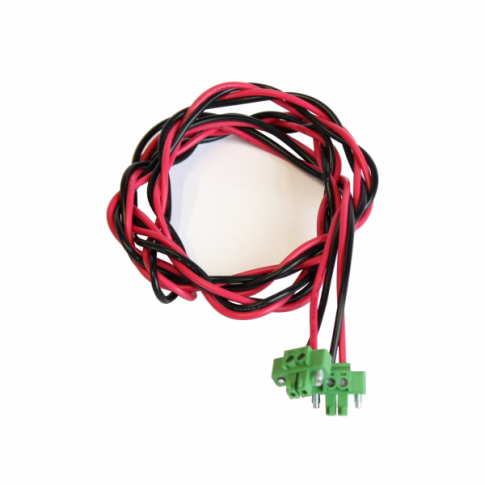

• 1 x Current sharing cable

A maximum of nine Iconica ZTR series inverters can be connected together to increase the total system power handling capability. Once connected in parallel, the inverters can be set to either single phase or three phase operation mode, typically used for running industrial equipment.

This parallel kit is suitable for linking identical Iconica 48V ZTR series inverters in parallel. Please note this kit is not compatible with any other inverter from the Iconica range.

Connection of additional inverters is very simple and full instructions can be found in the detailed user manual supplied with this parallel connection kit.

Please note: One parallel connection kit is required per Iconica inverter. For example, if connecting two inverters together, two connection kits are required.

Click on the Details and Specifications tab for more information.

Specifications:

• Compatible with identical Iconica 48V ZTR series inverters
• 1 x circuit board
• 1 x communication cable
• 1 x current sharing cable

This product comes with a detailed user manual which explains wiring and operations (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following document is available to download:

User manual for parallel connection kit for Iconica 48V ZTR series hybrid inverters (KMS-PARKIT-48R)
