Scanstrut DS6-P Vertical Cable Seal – IP68 Waterproof Gland for 2-6mm Cables, UV-Stable Plastic - Grey

The Scanstrut DS6-P is a compact vertical cable seal for 2–6mm cables, featuring a low-profile dome design, IP68 waterproof rating, and easy installation with marine-grade materials.

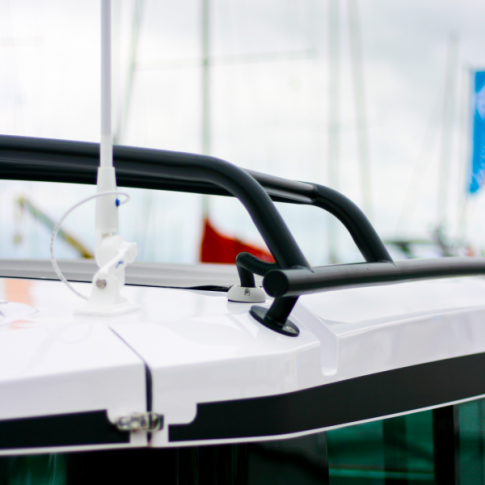

The Scanstrut DS6-P is a compact vertical entry cable seal, ideal for routing cables from 2–6mm through decks, roofs, or panels. Its dome-shaped profile not only offers a sleek, low-profile finish but also improves impact resistance and water shedding. Designed for reliable, watertight performance in marine, vehicle, and outdoor installations.

Key Features:

• IP68 Rated – Guaranteed 100% watertight seal for complete protection
• Compact Dome Design – Low-profile, impact-resistant, and discreet
• UV-Stable High-Impact Plastic – Durable and marine-grade construction
• Quick & Easy Installation – Captive nuts for secure, repeatable assembly
• Clean Finish – No messy sealant required on bungs
• Flexible Bung Options – Includes both pre-drilled and self-drill bungs
• Includes 316 Stainless Steel Fixings & 3M Gasket – For long-lasting performance



What’s Included:

• 1 × Scanstrut DS6-P Vertical Cable Seal
• 6 × Bungs (2mm, 3mm, 4mm, 5mm, 6mm, Self-Drill)
• 316 stainless steel fixings
• Waterproof 3M gasket
• Installation instructions



Applications:

• Small solar panel cables
• Antenna or GPS wires
• Lighting and sensor cables
• Marine, campervan, and outdoor setups



Click on the Details and Specification tabs for more information.





Specifications:

• Material: UV-Stable High-Impact Plastic
• Seal Rating: IP68 (100% Watertight)
• Cable Diameter: 2-6mm
• Height: 19mm
• Diameter of cable seal: 30mm
• Colour: Grey







Please follow the installation instructions in the Documents tab.



The following documents are available to download:

Installation instructions for the DS6-P

Technical drawing of the DS6-P
