Scanstrut SC-TILE-10 USB-A and USB-C Interiors Charging Socket 12V/24V - Black Bezel
The Scanstrut SC-TILE-10 delivers discreet, high-speed dual USB charging in an ultra-low-profile design—perfect for modernising marine interiors. Featuring 1 × USB-C (up to 60W) and 1 × USB-A (36W), it’s ideal for charging laptops, tablets, and smartphones onboard. With up to 36W on 12V systems and 60W on 24V systems, it easily powers everything from phones to USB-C laptops.
Designed specifically for luxury interiors, the TILE-10 features a compact 40mm footprint and sleek matt black bezel that blends seamlessly with any cabin décor. Built with conformal-coated electronics for added moisture protection, it’s the ultimate combination of performance and style for marine living spaces.
Please Note: TILE Series chargers are designed for interior use only and must not be installed in areas exposed to water.
Key Features
- Dual Ports – 1 × USB-C (60W max) + 1 × USB-A (36W max)
- Ultra-Fast Charging – Charges laptops, tablets, and phones at maximum speed
- Discreet Design – Ultra-low-profile bezel with a compact 40mm footprint
- Easy Installation – Fits a standard 29mm cut-out, front-fit mounting
- Interior Ready – Moisture-protected conformal-coated electronics
- Premium Finish – Sleek matt black bezel (316 stainless option also available)
- Universal Compatibility – Works with all USB-A and USB-C devices, charging two at once
What’s Included
- 1 × Scanstrut SC-TILE-10 USB-A & USB-C Charger (Black Bezel)
- Mounting hardware
- Installation instructions
Applications
- USB-C laptops & ultrabooks
- Tablets & smartphones (iPad, iPhone, Android)
- Marine interior cabins & saloons

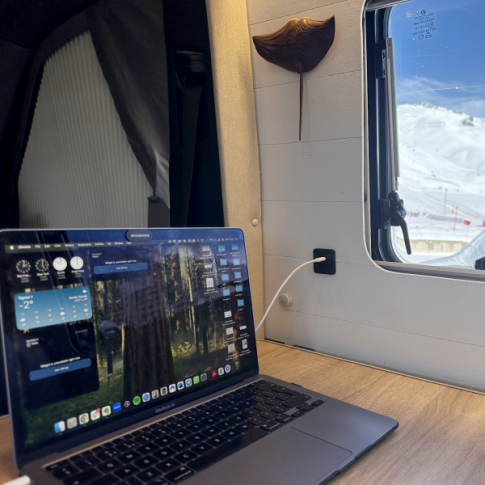

- Campervan & RV interiors
Click on the Details and Specification tabs for more information.
Specifications:
- Input Voltage: 10–32V DC (12V/24V systems)
- USB-C Output (12V System): 36W max (5VвЋ“3A, 9VвЋ“3A, 12VвЋ“3A)
- USB-C Output (24V System): 60W max (5VвЋ“3A, 9VвЋ“3A, 12VвЋ“3A, 15VвЋ“3A, 20VвЋ“3A)
- USB-A Output (12V/24V System): 36W max (5VвЋ“3A, 9VвЋ“3A, 12VвЋ“3A, 15VвЋ“3A, 20VвЋ“3A)
- Max Input Current: 6A (10A fuse recommended)
- Standby Power Draw: 0.01W
- Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE
Please follow the installation instructions in the Documents tab.
