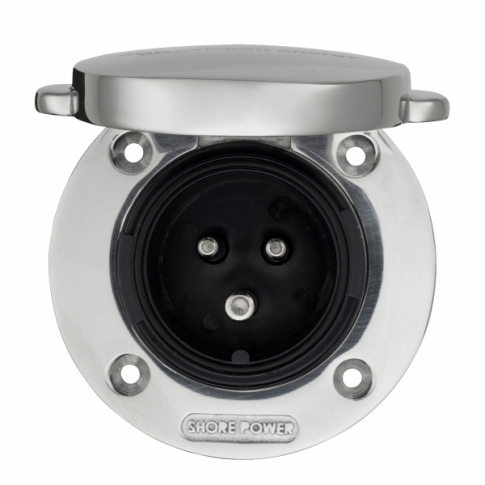

Victron Energy 16A 250VAC Stainless Steel Power Inlet (2p/3w)

This Victron Energy 16A 250VAC stainless steel power inlet allows you to connect your vehicle/boat to an external mains power source. It is positioned on the outside of your vehicle/boat and has a secure cover to protect it from the elements.



Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high-quality hybrid power electronics. Victron Energy products have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.


This Victron Energy 16A 250VAC power inlet is a 3-pin socket which allows you to connect your vehicle/boat to an external mains power source (such as an electric hook-up, shore power outlet or a generator). It is positioned on the outside of your vehicle/boat and has a secure cover to protect it from the elements. An additional shore power cable (not included) is required to make a connection.

This power inlet is made of stainless steel and it has a waterproof rating of IP56.



Specifications:

• Current rating: 16A
• Voltage rating: 250VAC
• Standard: IEC 60309, 2p+E
• Cover: solid cast 316 stainless steel
• Plug body: PA6
• Pins: brass, nickel plated
• Weight: 0.34kg
• Waterproof: IP 56
• CE certified: yes

Click on the Documents tab for a detailed technical drawing with the exact dimensions of this product.

This product is covered by a 5 year manufacturer warranty.



Please note that a hole in the body of your vehicle/boat is required in order to install this power inlet.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).



The following documents are available to download:

Dimension drawing for Victron 16A 250VAC stainless steel power inlet

Datasheet for Victron 16A 250VAC stainless steel power inlet
